PP 1110 Series

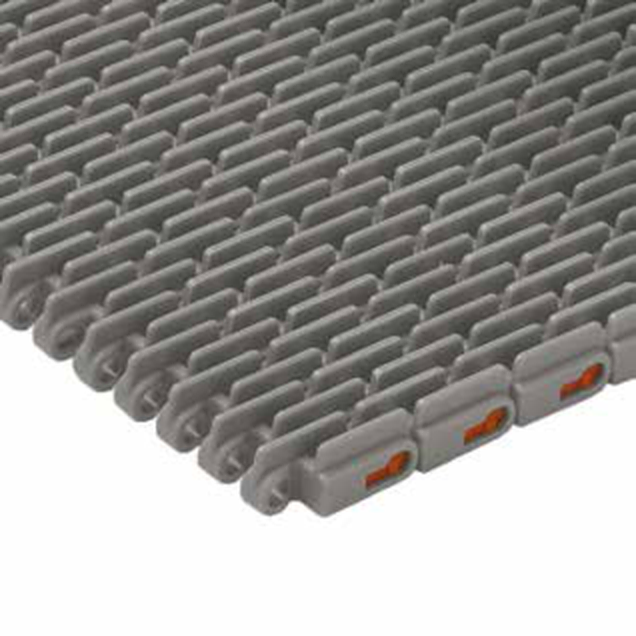

Matveyor 1110 Series raised rib modular belt, 25,4 mm pitch, PP — Special Polypropylene. Belt widths 152,4 mm (6") or wider in 76,2 mm (3") increments; belts wider than 1524 mm (60") are available in 76,2 mm (3") increments by substituting the last three digits of the part number with the desired width in inches (e.g. 63" wide PP belt → 1110PP063). Belts are supplied in the length requested by the customer.
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
1110PP006 |
6" (152.4 mm) | Austenitic Stainless Steel | 10920 N |
0.94 kg/m |
1110PP009 |
9" (228.6 mm) | Austenitic Stainless Steel | 10920 N |
1.41 kg/m |
1110PP012 |
12" (304.8 mm) | Austenitic Stainless Steel | 10920 N |
1.88 kg/m |
1110PP015 |
15" (381.0 mm) | Austenitic Stainless Steel | 10920 N |
2.35 kg/m |
1110PP018 |
18" (457.2 mm) | Austenitic Stainless Steel | 10920 N |
2.82 kg/m |
1110PP021 |
21" (533.4 mm) | Austenitic Stainless Steel | 10920 N |
3.29 kg/m |
1110PP024 |
24" (609.6 mm) | Austenitic Stainless Steel | 10920 N |
3.76 kg/m |
1110PP027 |
27" (685.8 mm) | Austenitic Stainless Steel | 10920 N |
4.22 kg/m |
1110PP030 |
30" (762.0 mm) | Austenitic Stainless Steel | 10920 N |
4.69 kg/m |
1110PP033 |
33" (838.2 mm) | Austenitic Stainless Steel | 10920 N |
5.16 kg/m |
1110PP036 |
36" (914.4 mm) | Austenitic Stainless Steel | 10920 N |
5.63 kg/m |
1110PP039 |
39" (990.6 mm) | Austenitic Stainless Steel | 10920 N |
6.1 kg/m |
1110PP042 |
42" (1066.8 mm) | Austenitic Stainless Steel | 10920 N |
6.57 kg/m |
1110PP045 |
45" (1143.0 mm) | Austenitic Stainless Steel | 10920 N |
7.04 kg/m |
1110PP048 |
48" (1219.2 mm) | Austenitic Stainless Steel | 10920 N |
7.51 kg/m |
1110PP051 |
51" (1295.4 mm) | Austenitic Stainless Steel | 10920 N |
7.98 kg/m |
1110PP054 |
54" (1371.6 mm) | Austenitic Stainless Steel | 10920 N |
8.45 kg/m |
1110PP057 |
57" (1447.8 mm) | Austenitic Stainless Steel | 10920 N |
8.92 kg/m |
1110PP060 |
60" (1524.0 mm) | Austenitic Stainless Steel | 10920 N |
9.39 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
9.6mm- Material
- PP — Special Polypropylene
- Packaging
- Rolls of
3.048m
PP — Special Polypropylene
For Matveyor® Belts. Special polypropylene that guarantees the best corrosion resistance to withstand chemical attack and an optimum high temperature resistance.
