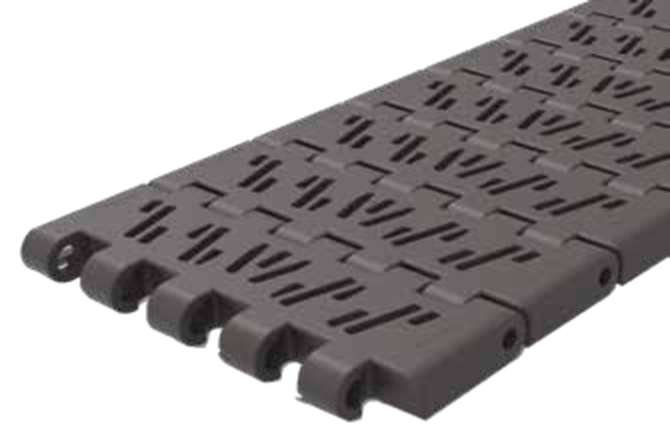

Regina
UP 1501 Series
Excellent planarity for a superior stability and improved side transfer of the most critical beverage containers. Optimized design of the open area ensuring that liquids and contamination do not remain on the chain surface. Ideal for high speed single track conveyors and pressureless combiners and decombiners. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

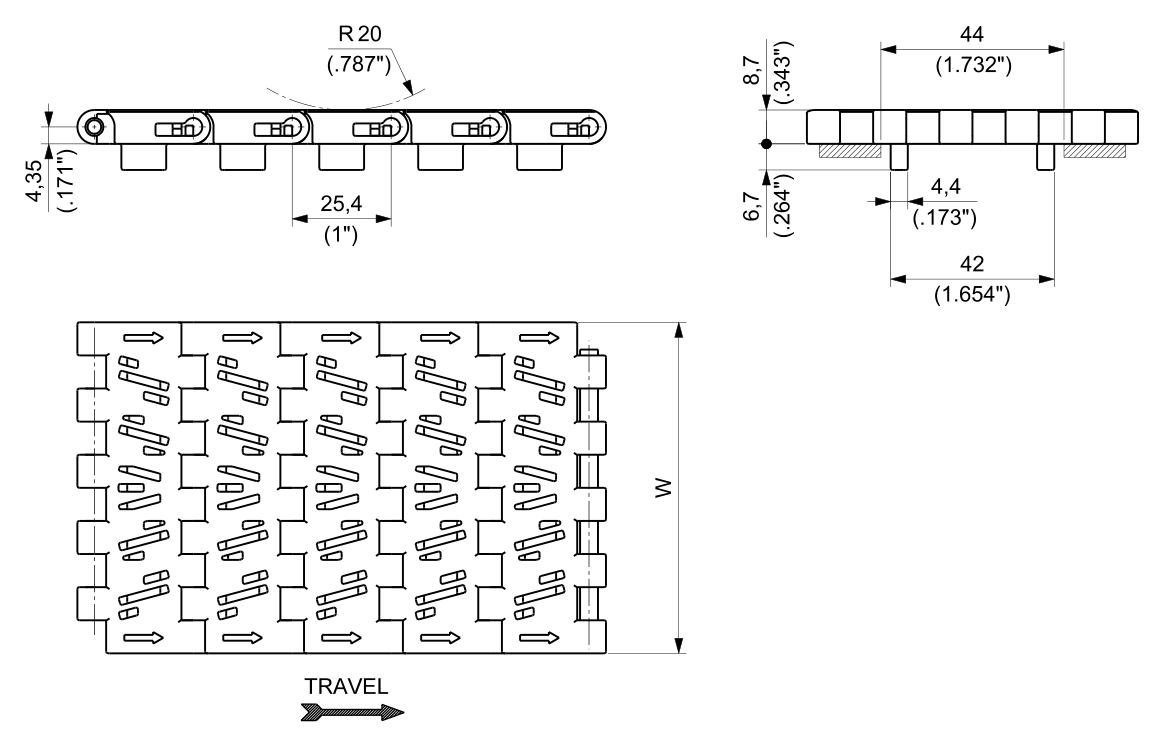

| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
1501AGUPKRA/000 |
83.8 mm (3.30")
|
8.7 mm
|
1850 N
|
0.73 kg
|
1501AGUP0085 |
85 mm (3.35")
|
8.7 mm
|
1850 N
|
0.73 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
