Regina

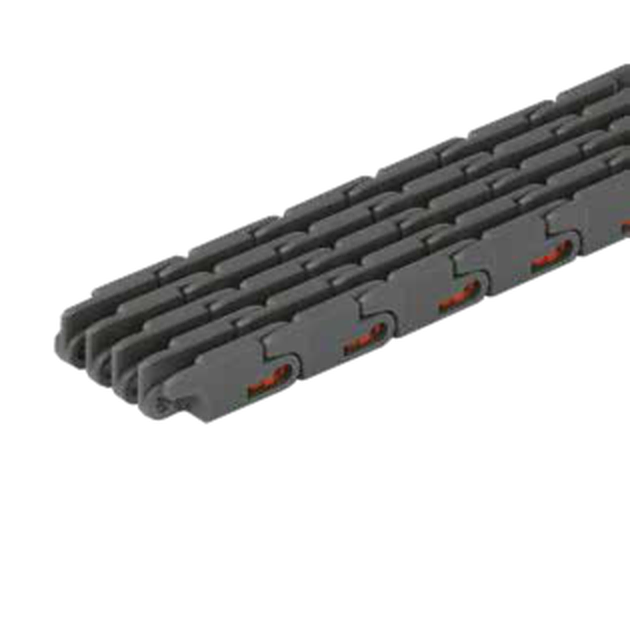

UP RR 1600 Series
The ideal ratio rib thickness/spacing offers high support even for the most unstable products, such as PET bottles with petaloid bottom, cans, 3-piece cans. Optimum liquid drainage and good mechanical strength. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
R1600AUPKMA/000 |
30 mm (1.18")
|
8.7 mm
|
700 N
|
0.39 kg
|
R1600AUPKMB/000 |
38.5 mm (1.52")
|
8.7 mm
|
950 N
|
0.49 kg
|
R1600AUPKNB/000 |
47 mm (1.85")
|
8.7 mm
|
1150 N
|
0.6 kg
|
R1600AUPKPB/000 |
58 mm (2.28")
|
8.7 mm
|
1400 N
|
0.75 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- UP — Ultra Performance Homopolymer Delrin®
- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
