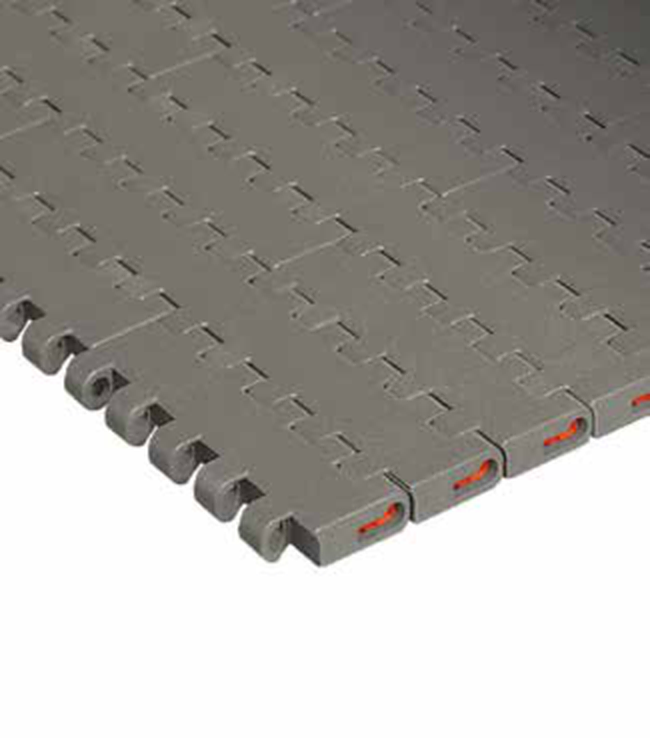

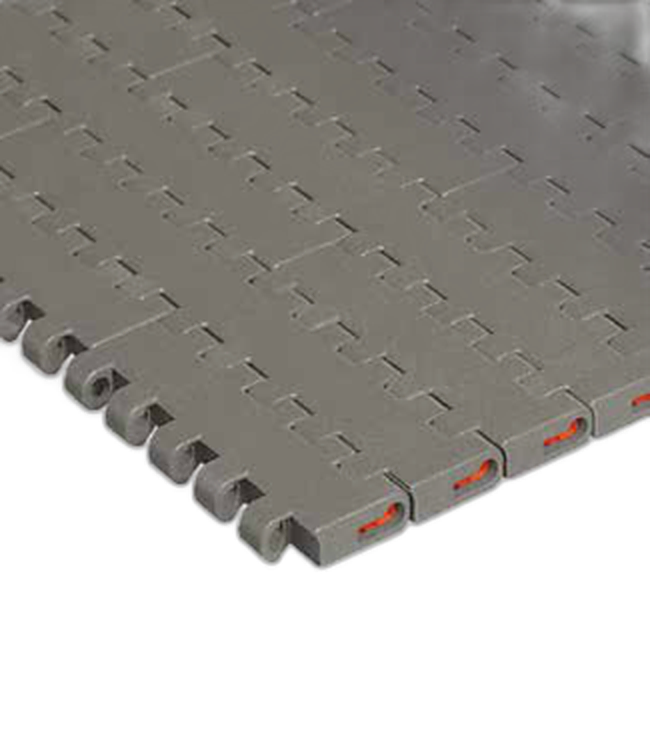

D2K 1600 Series
Matveyor 1600 Series solid top modular belt, 25,4 mm pitch, D2K — Special Delrin® Reinforced with Kevlar®. Belt widths 85 mm (3.346") or wider in 85 mm (3.346") increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width (e.g. 1105 mm wide UP belt without guide → 1600BUP1105). Belt widths ≤ 1020 mm (40.16") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.
Product Configuration
Select a part number to add it to your quote
| Width | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|
| 85 mm (3.35") | 0.65 kg/m |
||
| 170 mm (6.69") | 1.3 kg/m |
||
| 255 mm (10.04") | 1.95 kg/m |
||
| 340 mm (13.39") | 2.6 kg/m |
||
| 425 mm (16.73") | 3.26 kg/m |
||
| 510 mm (20.08") | 3.91 kg/m |
||
| 595 mm (23.43") | 4.56 kg/m |
||
| 680 mm (26.77") | 5.21 kg/m |
||
| 765 mm (30.12") | 5.86 kg/m |
||
| 850 mm (33.46") | 6.51 kg/m |
||
| 935 mm (36.81") | 7.16 kg/m |
||
| 1020 mm (40.16") | 7.81 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
