ULF HFS 1600 Series

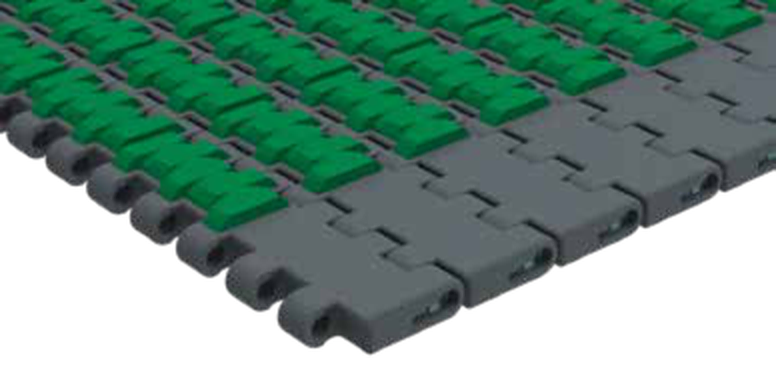

Matveyor HFS 1600 Series rubberized surface — side indent modular belt, 25,4 mm pitch, ULF — Ultra Low Friction Polyester Resin. Belt widths 255 mm (10.04") or wider in 85 mm (3.346") increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width (e.g. 1105 mm wide ULF belt → HFS1600ULF1105). Belt widths ≤ 1020 mm (40.16") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.
Product Configuration
Select a part number to add it to your quote
| Width | Part Number: Without Tracking Guide | Part Number: With Tracking Guide | Weight |
|---|---|---|---|
| 255 mm (10.04") | 2.27 kg/m |
||
| 340 mm (13.39") | 3.03 kg/m |
||
| 425 mm (16.73") | 3.79 kg/m |
||
| 510 mm (20.08") | 4.54 kg/m |
||
| 595 mm (23.43") | 5.3 kg/m |
||
| 680 mm (26.77") | 6.06 kg/m |
||
| 765 mm (30.12") | 6.82 kg/m |
||
| 850 mm (33.46") | 7.57 kg/m |
||
| 935 mm (36.81") | 8.33 kg/m |
||
| 1020 mm (40.16") | 9.09 kg/m |
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
8.7mm- Material
- ULF — Ultra Low Friction Polyester Resin
- Packaging
- Rolls of
3.048m
ULF — Ultra Low Friction Polyester Resin
Polyester resin that offers good mechanical strength in combination with low coefficient of friction.
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
