Regina

UP 2556HTB-SR Series

Name: UP 2556HTB-SR Series
Brand: Regina

Modular Belts · 2556HTB-SR

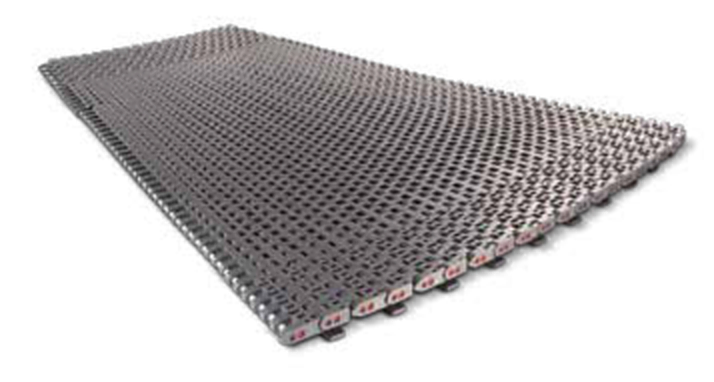

Heavy duty sideflexing belt with radial bearing, tight radius version. Average ratio between internal sideflexing radius and width = 1.2. Suitable to be used in more compact conveyors, saving floor space, for heavy duty applications with high working load and speed. Guide system with one side TAB + Stainless Steel Bearing (waterproof). Reinforced outer modules, reduced sideflexing radius. Corner tracks: Regina Conveyor Catalogue p348. Rolls of 1,524 m (5 ft).

Select a row to add it to your quote

Width

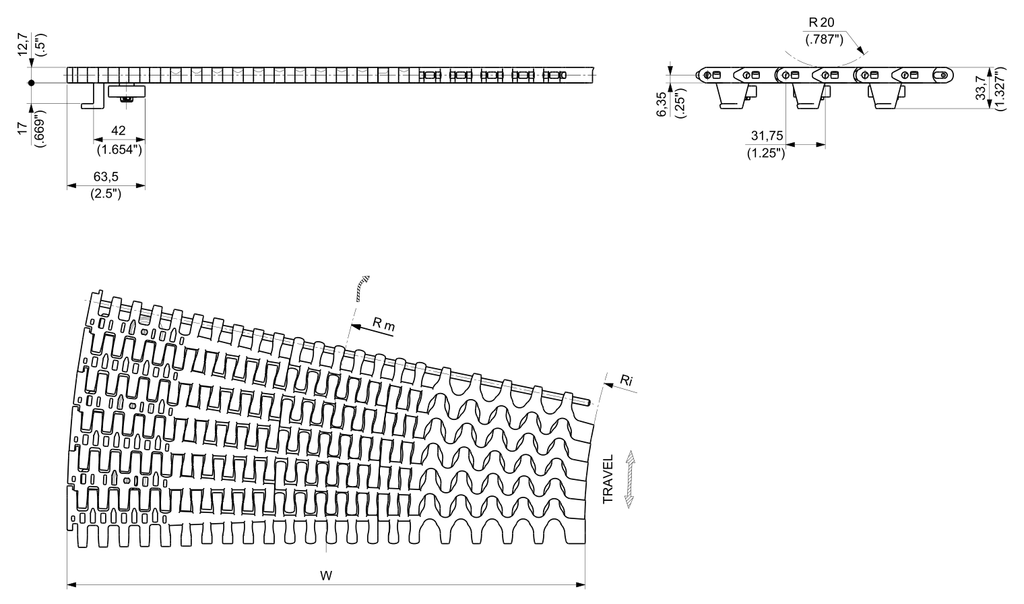

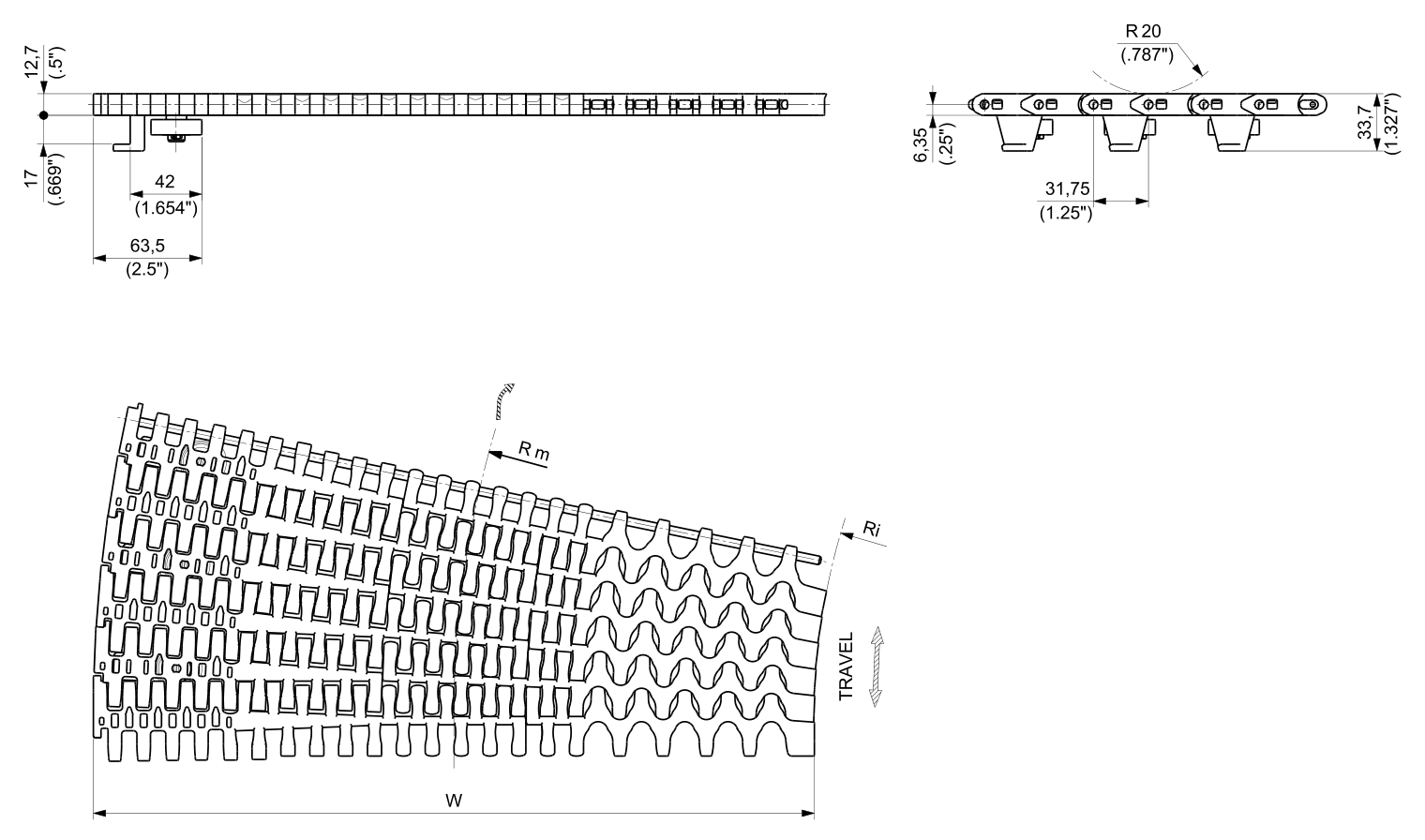

Code	Width W	Inner radius Ri	Medium radius Rm	Weight
`2556HTB-SRUP0340`	`340` mm (13.39")	`330` mm	`500` mm	`3.91` kg
`2556HTB-SRUP0425`	`425` mm (16.73")	`387.5` mm	`600` mm	`4.7` kg
`2556HTB-SRUP0510`	`510` mm (20.08")	`545` mm	`800` mm	`5.43` kg
`2556HTB-SRUP0595`	`595` mm (23.43")	`702.5` mm	`1000` mm	`6.17` kg
`2556HTB-SRUP0680`	`680` mm (26.77")	`860` mm	`1200` mm	`6.9` kg
`2556HTB-SRUP0765`	`765` mm (30.12")	`1017.5` mm	`1400` mm	`7.63` kg
`2556HTB-SRUP0850`	`850` mm (33.46")	`1175.5` mm	`1600` mm	`8.36` kg

Type: Matveyor
Pitch: 31.75 mm
Thickness: 12.7 mm
Material: UP — Ultra Performance Homopolymer Delrin®
Packaging: Rolls of 3.048 m
