Regina

UP RR 1500 Series

Name: UP RR 1500 Series
Brand: Regina

Modular Belts · RR 1500

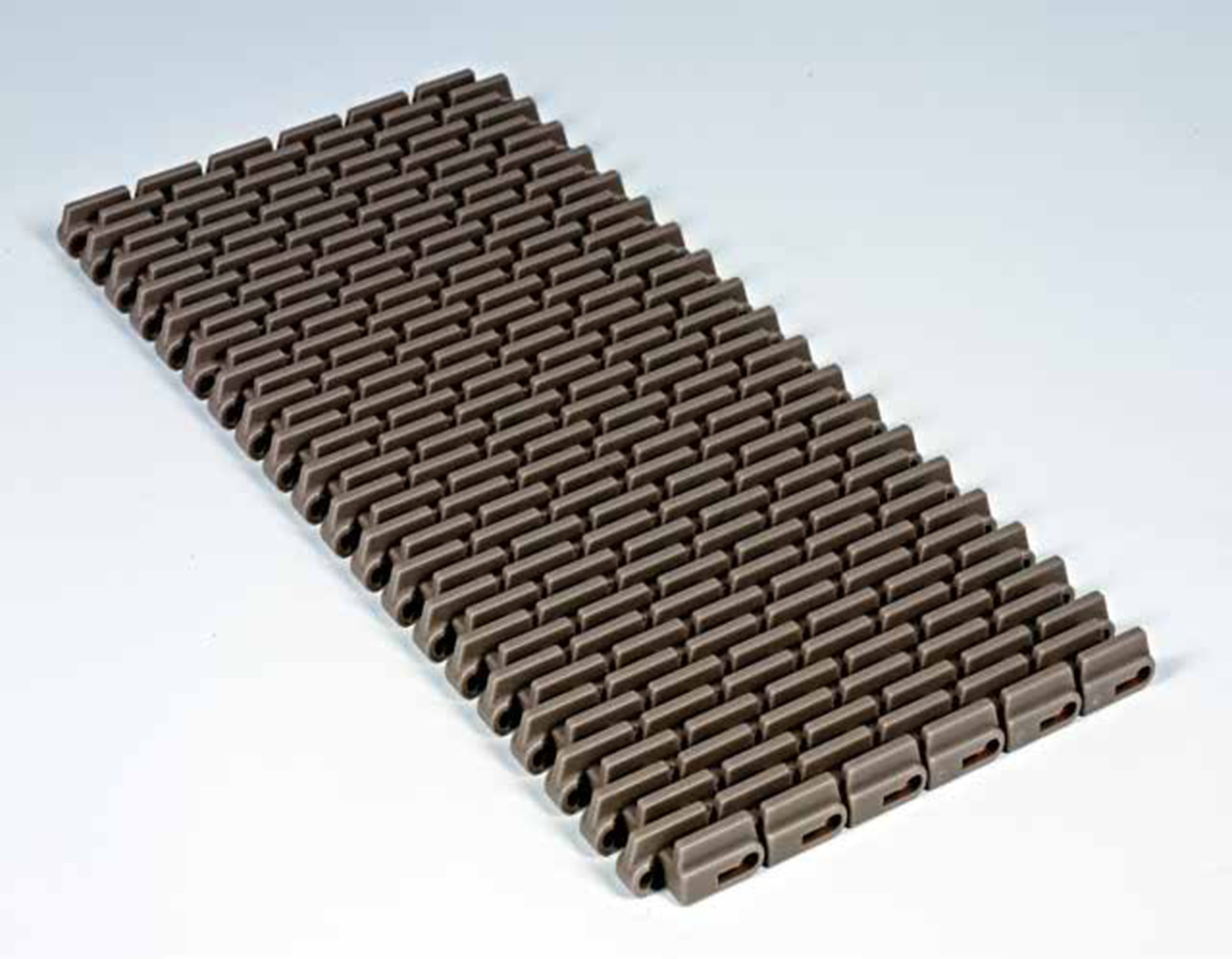

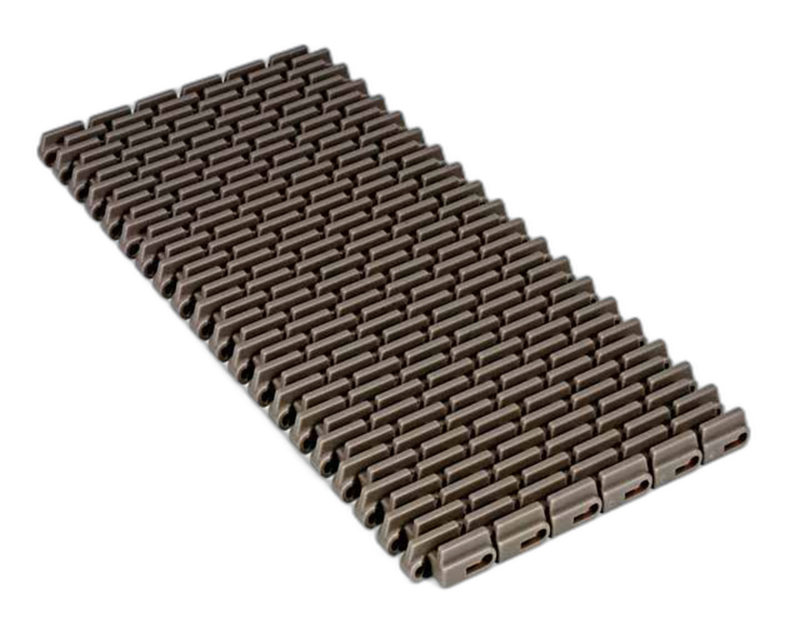

Matveyor RR 1500 Series raised rib modular belt, 25,4 mm pitch, UP — Ultra Performance Homopolymer Delrin®. Belt widths 170 mm (6.69") or wider in 85 mm (3.34") increments; belts wider than 1020 mm (40.16") are available in 85 mm (3.35") increments by substituting the last four digits of the part number with the desired width (e.g. 1105 mm wide belt → RR1500BUP1105). Belt widths ≤ 1020 mm (40.16") are supplied in rolls of 3,048 m (10 ft) each. Belt widths ≥ 1105 mm (43.50") are supplied at the length requested by the customer.

Select a row to add it to your quote

Width

Code	Width W	Pin	Working load	Weight
`RR1500BUP0170`	170 mm (6.69")	Austenitic Stainless Steel	`21600` N	`1.64` kg/m
`RR1500BUP0255`	255 mm (10.04")	Austenitic Stainless Steel	`21600` N	`2.45` kg/m
`RR1500BUP0340`	340 mm (13.39")	Austenitic Stainless Steel	`21600` N	`3.27` kg/m
`RR1500BUP0425`	425 mm (16.73")	Austenitic Stainless Steel	`21600` N	`4.09` kg/m
`RR1500BUP0510`	510 mm (20.08")	Austenitic Stainless Steel	`21600` N	`4.91` kg/m
`RR1500BUP0595`	595 mm (23.43")	Austenitic Stainless Steel	`21600` N	`5.72` kg/m
`RR1500BUP0680`	680 mm (26.77")	Austenitic Stainless Steel	`21600` N	`6.54` kg/m
`RR1500BUP0765`	765 mm (30.12")	Austenitic Stainless Steel	`21600` N	`7.36` kg/m
`RR1500BUP0850`	850 mm (33.46")	Austenitic Stainless Steel	`21600` N	`8.18` kg/m
`RR1500BUP0935`	935 mm (36.81")	Austenitic Stainless Steel	`21600` N	`8.99` kg/m
`RR1500BUP1020`	1020 mm (40.16")	Austenitic Stainless Steel	`21600` N	`9.81` kg/m

Type: Matveyor

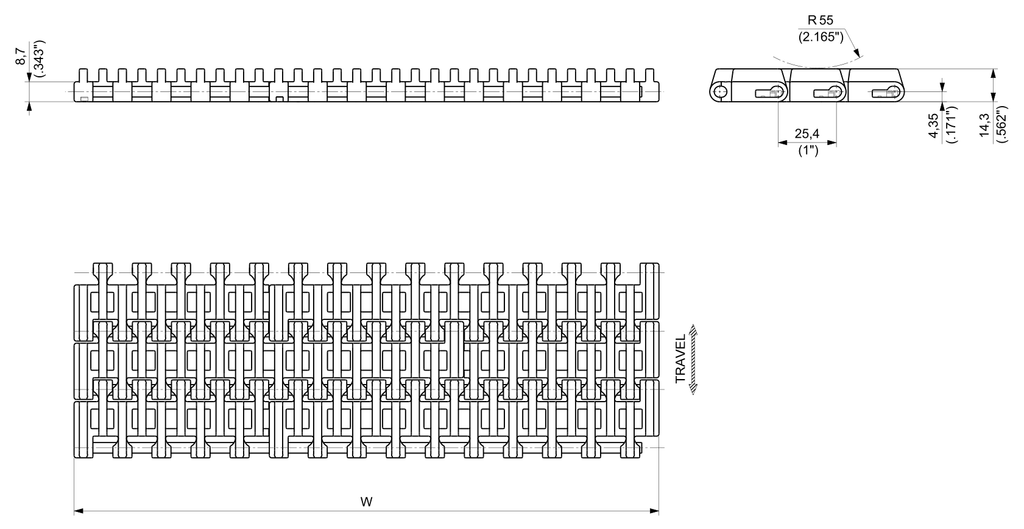

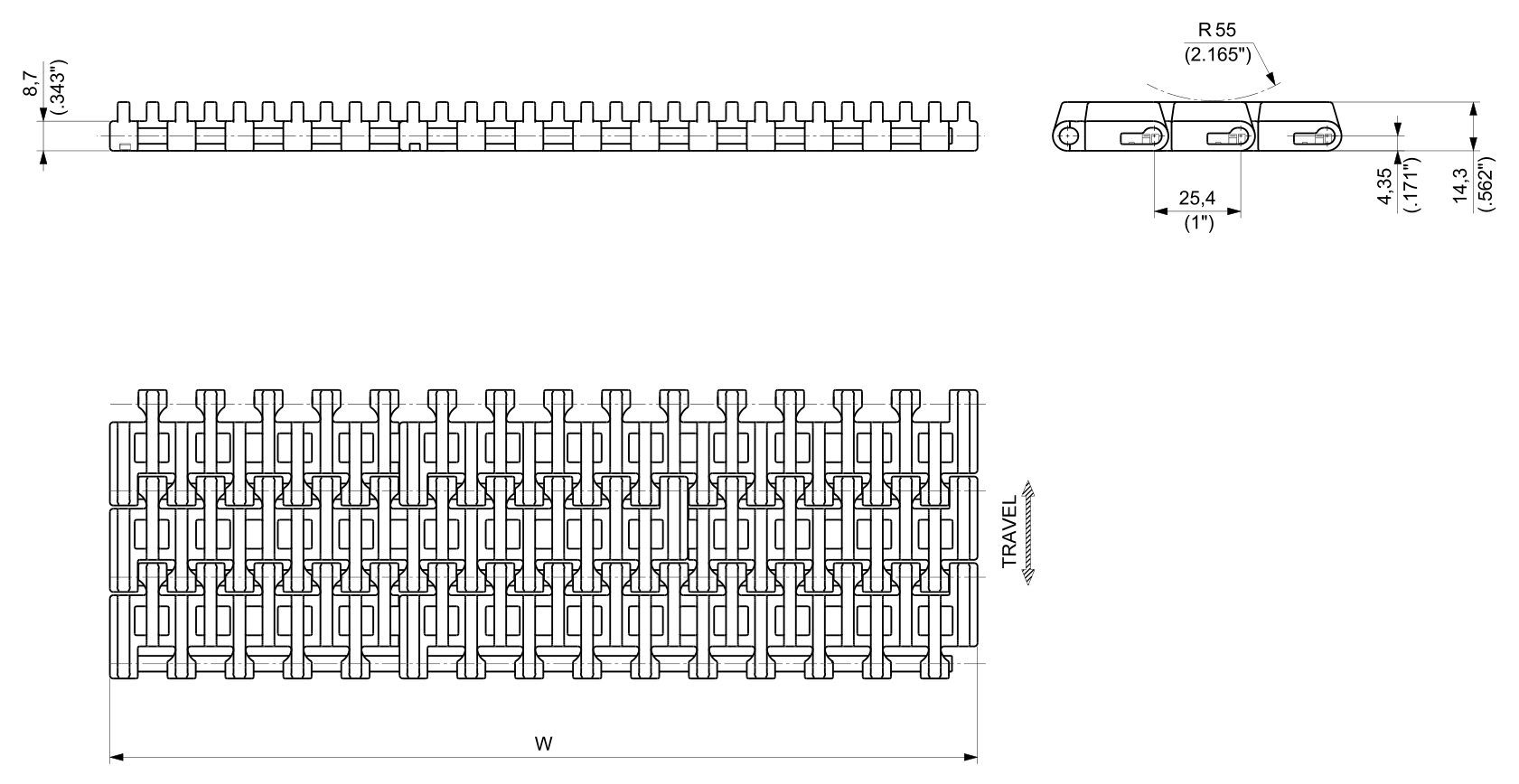

Pitch: 25.4 mm
Thickness: 8.7 mm
Material: UP — Ultra Performance Homopolymer Delrin®
Packaging: Rolls of 3.048 m
